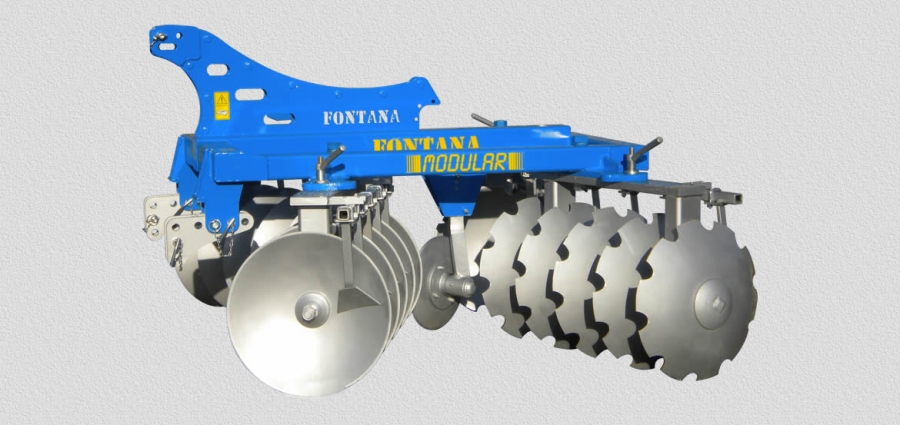

HARROWS SERIES ED P with carried disks in 4 sections

HARROWS SERIES ED P with carried disks in 4 sections



Features

  • N° 8 swinging supports with perfectly sealed double bearing.
  • Adjustable central disk equipment and safety bolt.
  • Independent erasers.
  • Recordable connections.



MODEL - n° disks - Ødisks distanceWorking width
m
Weight kgSwinging
support
standard
Power rating
HP
P - 17 - 61232‚00950Ø3090
P - 21 61232‚501150Ø30100
P - 25 - 61233‚001350Ø30100
P - 29 - 61233‚501650Ø40130
P - 17 - 61252‚201000Ø3090
P - 21 - 61252‚701185Ø30100
P - 25 - 61253‚201410Ø30110
P - 29 - 61253‚701700Ø40113
P - 21 - 66252‚801450Ø40110
P - 25 - 66253‚301700Ø40130
P - 29 - 66253‚801850Ø40150



Accessories

  • Follow disk complete with scraper (optional on all models).
  • Manual road closing kit (optional on all models).
  • Shock damper for plants (optional on all models).
  • Tow bar (optional on all models).
  • Hydraulic device for sections control type “SYNCHRO” and road closing (n° 1 cylinder) =>
    optional on all models.
  • N° 2 synchronised cylinders for rear sections adjustment (optional on all models).
  • N° 2 side hearth-buffer skirt complete with bracket and bolt (optional on all models).
  • Hydraulic device for sections control and road closing (n° 1 cylinder)
    N.B.: Recommended on harrows with working width up to 3 meters.
  • Difference swinging supports from Ø 30 to Ø 40
  • Rear roller or levelling bar.
